Position

The position CSS property sets how an element is positioned in a document.

position property has 5 values: static, relative, absolute, fixed and sticky.

By default position is set to be static, and the element is positioned in the document in a normal layout flow: block element will fill up the available inline space of the parent element (span 100% of the width), inline element is just the size of its content and properties like top, right, z-index have zero effect.

relative positioned element is firstly placed the same as static, then offset relative to itself based on values of top, right, left and right. But this offset does not affect other element, it will still have the same space as static element. Now when set z-index to a value that is not auto, it will create a new stacking context (it can stack on other elements).

absolute value will remove the element from the normal layout flow, and other elements will treat it like it does not exist (no space for it). The position of this element is relative to its closest positioned (position is not static) ancestor or the initial containing block (more on this later) if there is no such ancestor. z-index works just like a relatively positioned element. Only absolute can set offset property of the same axis to get a certain size, like left: 0; right: 0; to fill all the available horizontal.

fixed element is just like absolute element, but it is always positioned relative to the initial containing block. This value also creates a new stacking context every time.

sticky element is positioned just like static at first, then when it been scrolled to a certain position relative to its nearest ancestor that has a “scrolling mechanism” (overflow is hidden, scroll, auto), sometimes that ancestor isn’t the nearest actually scrolling ancestor.

Containing Block

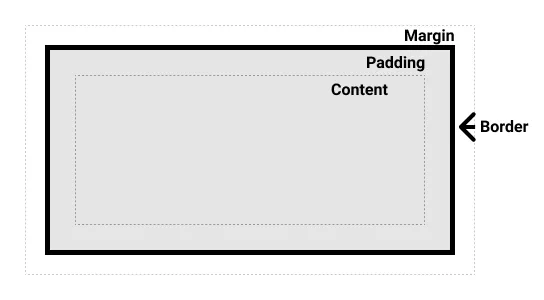

every element lives inside of a box that is divided into four areas: content area, padding area, border area and margin area.

In most cases, the containing block of an element is the content area of its parent or corresponding ancestor (like in the case of relatively positioned elements). But there are some exceptions:

1. When property position is absolute, the containing block is the padding box (why? CSS why?) of the nearest non-static positioned ancestor element.
2. When property position is fixed, the containing block is the initial containing block, which is the viewport for continuous media.
3. If the position property is absolute or fixed, the containing block can also formed in the nearest ancestor element that has something like filter value other than none.

Now we have identified the containing block, what does it do? Here are some effects of the containing block:

1. Percentage values of width, height, padding, margin are computed from the element’s containing block.
2. When position property is aboslute or fixed, offset value top, left, right, and bottom are computed from the element’s containing block.

sticky and containing block

For the property sticky to work, we need to be careful about the size of the element and its containing block.

When the size of a stickily positioned element is too large, like filling up the whole content of its containing block, it won’t stick because it will never scroll to its offset position.

Also when the size of containing block is too small, the containing block itself can be scrolled away causing the stickily positioned element to be scrolled away too.
